Newton's Laws of Motion

Over the last week or two, our class covered all Three of Newton's Laws of Motion. We learned about his laws by performing two in class labs, doing a ton of practice problems, and from in class notes.

Our first lab was the HOVER DISC lab. In this lab we went down into the  gym foyer and performed several different scenarios using a hover disc. In groups of three we looked at these different scenarios to see what kind of forces  were taking effect. The picture below is an example of what my group and I did in the gym foyer. Also the two diagrams are the forces taking effect in this specific scenario. This lab allowed us to examine Newton's Third Law of Motion. This law states that when two objects interact, they exert equal and opposite forces on each other.

Interaction Diagram
   An interaction diagram, like the one below, allows us to analyze ALL the force on MANY objects. For example Person 2 is pushing the disc, meaning that Fn( Normal force) is taking place and there is Fg( Gravitational Force) between the disc, person 2, person 1, and the Earth.

Free Body Diagram
  A free body diagram, like the one beneath the interaction diagram, allows us to take analyze ALL forces on ONE object. In this free body diagram we are looking more closely at the disc and the types of forces being applied on it. A free body diagram allows us to show the magnitude and direction of the forces being applied, which really helps when your trying to solve an acceleration problem.

After we performed another lab, a Fan Cart Lab. In this lab our goal was to find the relationship between mass, acceleration, and force. We did this by turning on  a Fan Cart and letting it hit against a piece of aluminum on a force probe in order to get a constant force of about 2N( newtons).

Next we used the logger pro program on the computer to get a time vs velocity graph. This graph gave us the slope of the change in velocity over the change in time which happens to be acceleration.

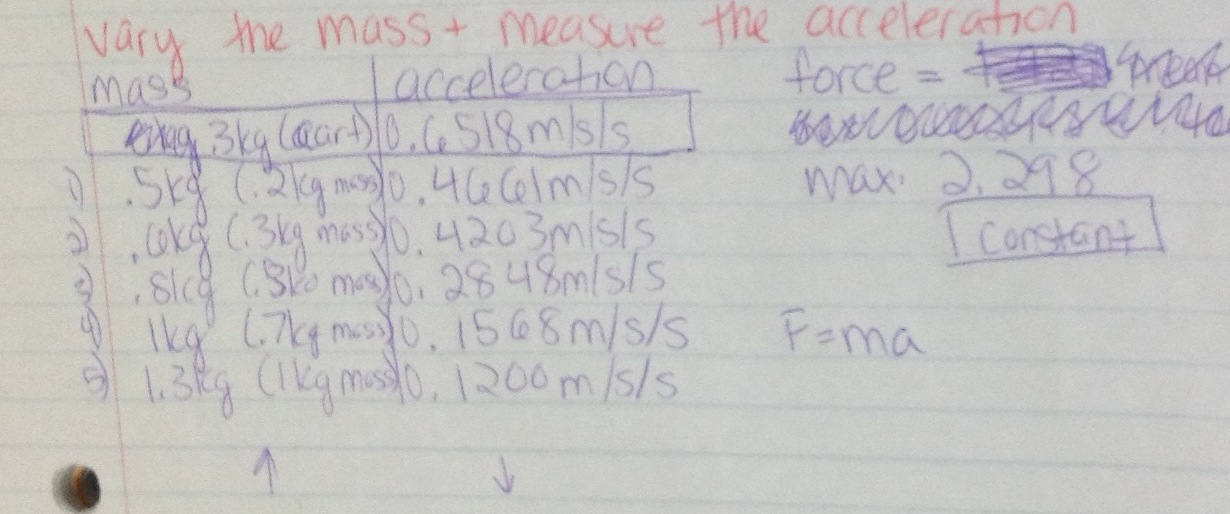

Then we added a series of weights on the fan cart to help us find the relationship between acceleration and mass. We realized that mass and acceleration are  inversely proportional then we asked ourselves " what if we multiplied these mass and acceleration together," so we tried it out.

 Once we multiplied them together we were shocked to find out that it equaled the constant force we got during the beginning of the lab which as 2N. This helped us derive and equation the relates mass, acceleration, and force which is:

Force = (mass) (acceleration)

Later as we took notes in class, we found out that the equation above is also Newton's Second Law of Motion.  We can also understand Newton's First law of Motion by looking back at both of these labs. His first law states that an object at rest or traveling at a constant speed will continue to do so, unless a net force acts on it. Now just to recap everything we learned and sum it up,the picture below describes all three of Newton's Laws of Motion.

~Real World Connection~

A real world situation where all three of Newton's Laws take place could be a soccer game.

Newton's First Law of Motion:  A soccer player could kick a ball and it will keep going straight unless another player hits it or the friction between the ball and the earth reduces the ball's acceleration.

Newton's Second Law: Just kicking the ball itself could be an example for this law but to make things interesting soccer could also demonstrate how mass and acceleration are inversely proportional. If it were to rain the soccer ball would get heavier( increase in mass) making it harder for a soccer player to kick the ball farther or faster (decrease in acceleration)

Newton's Third Law: If a soccer ball hits a soccer player they would both exert the same but opposite amount of force. The reason why the ball bounces off the soccer player though is due to the difference in mass between the two.

Impulse Lab

BIG QUESTION:
What is the relationship between impulse, force, and time in a collision?

 Newton once claimed that  " For every force there is an equal opposite of force."

Lab:

In this lab we made a collision between a sonic probe and a cart, both with an aluminum ring attached to help us see how time manipulates force.

After we collected our data we found out that the change in both force and momentum( Impulse)  were relatively close. We got this by finding the change in momentum and also by finding the area of a force x time graph. As you can see in the picture below J ( impulse) =-.319 is pretty close the area of the graph T(F)= -.3768.

Because these two are really close ato being the same data this means that a force x times graph  represents the impulse .

The next part of our lab we observed a collision between two carts, one weighing more than the other ( blue cart weighing more) . We later found out that these two carts both bent the same amount even though one cart( the blue cart) weighed more. Now you can conclude that  NO MATTER WHAT THE MASS THERE IS AN EQUAL  AND OPPOSITE FORCE.

Recently Asked Questions:

Why does the red cart fly back farther than the blue cart?

• The red cart flies back due fact that the blue cart has a bigger mass which means there will be a bigger difference in momentum between the red and blue cart.
• The aluminum rings doesn't affect why the red cart flies back because it doesn't change and it will have the same amount of force as the blue cart

Why do both the aluminum rings bend the same amount?

• They bend the same amount because the only thing that changed was the mass which doesn't affect the force or time in this situation

Real Life Connection

Rock climbing is the best way to think about an impulse lab for me. In rock climbing when a climber comes down a cliff, they use a rope to help INCREASE the amount of stopping time  and DECREASE the amount of force. This is a really big deal to climbers because if they couldn't increase the amount of stopping time then the force could be great enough to kill them. I think climbers really appreciate physics every time the choose to go climb.

Collisions Lab

Big Questions:
1. What is the difference between the amount of energy lost in an Elastic vs. Inelastic collision?
2. What is a better conserved quantity? Momentum or energy?


In this week's lab, our main goal was to try and find out whether momentum or energy is better conserved and why. We started this lab by doing an elastic and inelastic collision to see how momentum and kinetic energy changed.

First we did an inelastic collision. An inelastic collision is when one object collides with another and they both travel in the same direction. After we performed an elastic collision. An elastic collision is when to objects collide and they both travel in two separate directions. During both these collisions we used a sonic range finder that measures sound so we could find the velocity before and after the collision.

Once we collected all our data, we then figured out the percent difference which is the change in energy or momentum. Looking at the percent differences of both inelastic and elastic collisions, made us realize that momentum has a lower percent difference, meaning that momentum is better conserved during any collision no matter elastic or inelastic.

Inelastic Collision's Percent Difference

Elastic Collision's Percent Difference

Real World Connection
 A good real life connection would be golf. Golf is a well known sport and is watched by tons of people around the world. This would be a great example for an elastic collision. During golf the golf club hits a golf ball, energy is then transfered from golf club to the ball. In the process though the ball loses some energy due to factors such as wind.

Rubber Band Cart Launcher

BIG QUESTION:
-How are energy and velocity related?



Two weeks ago we found out the relationship between mass, height, and gravity, to derive an equation using them, and find different way of finding potential energy in order to find velocity.  We continued to use  elastic potential energy in our lab while we tried to find the velocity of the red cart. We found this by launching the cart through a photo gate sensor and by doing a series of  trials,  for the most accurate data. We used a program called Graphical Analysis to create a graph that best represented our data.
From this lab I learned that velocity and energy are directly proportional, which means if you increase velocity you also increase the energy. I also learned that energy is conserved throughout the system which means it stays the same. The energy is just transferred from elastic potential energy to kinetic energy. In this lab we derived the equation K=1/2(m)(v)^2. which helps describes how energy and velocity are directly proportional.

Real Life Connection:
     A connection I can make to the real world would be a sling shot. When using a sling shot you are pulling back on an object with a rubber band( Elastic potential energy) and the farther you pull it back the more energy it gains. Then when you release the object the energy from the rubber band is transferring into velocity but not losing any energy. Kinetic energy is just replacing the elastic potential energy.

Rubber Band Lab

BIG Question!

How does the force it takes to stretch a rubber band depend on the AMOUNT by which you stretch it?

Lab Time

In this lab, we wrapped a rubber band over prongs then we pulled it to different lengths (such as 1 cm, 2cm, 3cm, etc)with the electronic force probe. The first time we pulled the rubber band to the different lengths it was just a single-looped rubberband but then the second time, there were two loops. We did this to see if there would be any drastic changes to our data. The data we got from our single looped rubber band looked a little like this:

1 cm = 0.38 N

2 cm = 1 N

3 cm = 1.9 N

4 cm = 2.7 N

5 cm = 3.5 N

While our double looped rubber band looked like this:

1 cm = 3.1 N

2 cm = 5.3 N

3cm = 8.4 N

4 cm = 11 N

5cm = 12.6 N

We noticed that by double looping the rubber band that there was an increase in force even though we didn't change how far we pulled the rubber band.

Next, we had to create an equation relating the rubber band, the distance we stretched it, and the force need to stretch it. We found an equation by graphing our data and coming up with a best fit line on a graph where the x-axis is the distance in meters and the y-axis is the force in newtons.

After all this we came up with the equation Fs=kx.

Fs=Force need to stretch the rubberband

K=Elastic constant of the rubber band

X=the distance stretched

Lastly, we wanted to find the energy/work used in this lab. Just like in our simple machines lab we wanted to find the area of the graph which is also the energy but in this lab the area would be different. The area for this lab is in the shape of a triangle so we had to use the forumla to find a triangle which is Area=1/2(Base)(Height)[A=1/2BH] . We used this forumla and just substituted in our first equation Fs=kx. Our area would be equivalent to Us(elastic potential energy, our base equal to "x" and our height equal to "Fs."We later found out that we couldn't use Fs in our new equation so we changed it to "kx." Afterwards we came to the conclusion that the equation to find the elastic potential energy is Us=1/2(k)(xsquared).

Finally we are done with the lab and now know that force is directly proportional to distance, which is the answer to our big question.

Real World Connection

I think bungie jumping is a great example for this lab. When you bungie jump you are stretching a rope "x" amount of distance depending on how much you weigh which is also the force need to stretch the rope.  The more you weigh the farther you will go down meaning that is directly proportional just like our rubber band lab. This is why when you bungie jump they need to know how much you weigh so that they can increase or decrease the amount of rope your using because if they use a long piece of rope and you stretch the rope too much then you might hit the ground leading to serious injury.

Pyramid Lab

Big Question:

Is the product of force and distance universally conserved (a constant in systems other than pulleys)?

Lab

To start off this lab, we pulled a toy car up a 12cm(vertically) ramp while adding different masses and making the distance of the ramp shorter and longer. The car it self was 250g and we kept adding masses of 250g on it throughout the lab. For our first trial we pulled just the car(250g) up to 9cm  and it took 2.5 Newtons. We then added a mass of 250g to the car so it weighed 500g together. After we pulled the car of 500g up to 166cm and we got a total of 1 Newton to pull the car that long distance. This is when my group started to question what we were doing. We were unsure on what we were "supposed" to get during the lab but we just kept recording data and eventually figured it out. Finally we came up with the conclusion that if we changed the mass of the car or how far we pulled the car on the ramp, we would always end up with the same amount of energy.

A visual drawing of what the experiment looked like
D=distance
M=Mass(the car)
F= Force need to pull/push the mass a certain distance

Real World Connection

Handicap ramps and the great pyramids of egypt use this idea of having a ramp to use less force. Handicaps need these ramps because they can't put pressure or force on their legs(less force) so they have to travel up this ramp (more distance).  These ramps are a real life save for them, it allows them to get to places where they would usually have to walk up stairs. Having a ramp saves time for handicaps and also allows them to put in less effort, making their lives easier.

Pulley Lab

Big Questions

How can force be manipulated using a simple machine?

What pattern do you observe regarding the relationship between force and distance in a simple machine?

Lab

In this lab we rebuilt the pulley system that we used from the mass vs. force lab. The hardest thing about this lab was probably rebuilding the pulley too because my group and I would always put the string in wrong. No matter how frustrating the string made us, we were still able to accomplish our goal. We found out that it takes 2 Newtons to lift a brass mass .1 meter (10 cm ) without the pulley system and with the pulley system, it only took about 1.3 Newtons to lift a brass mass .2 meters ( 20 cm) which was double what we lifted without the pulley. While we were lifting the brass mass my group also recorded how long the string was. The first time the string was about 20cm  long and the second time it was about 30 cm long. This is when we figured out that force can be manipulated by the distance of the string. We then concluded that if we double the distance then we are also halving the force, which describes the relationship between force and distance.

After we collected all our data we made a bar graph like the one below. We noticed that they all share the same area no matter how tall or wide it may be. Each graph had something different whether it was a high amount of newtons or a long distance but when you find the area you notice that they are all the same. We concluded that no matter what energy or the area would always remain a constant.

Simple Machines

In class we talked about what are simple machines in our daily lives and one that I came up with was a crane. The cables of the crane act as a pulley.  In addition, one that not everybody would think is a lever. On the back of the crane, there is a huge weight that compensate for what is being picked up at the front of the crane. Having a very heavy weight on the back of the crane is essential because it allows a load to be picked up far forward (more distance) at the front of the crane so it can pick up heavier items without tipping over. ( less force)

Mass vs. Force Lab

Mass is related to force? UNBELIEVABLE

During the first week of school my classmates and I started learning about the effects of mass on force. To start off this lesson we were given a manual force probe, an electronic force probe and a set of brass weights with different masses. With these materials my group and I started to measure the amount of force exerted to lift brass weights of  200 grams , then 500 grams  and after 1000 grams, with a manual probe. After we completed lifting each weight and recording the amount of force it took to lift up the set of weights, we repeated the same procedure with an electronic probe so we could get more accurate data.


Once we got all our data we took this information and began to create a graph that will show the relationship between mass and force. To make this graph we needed to put the mass of each weight(kilograms) as the x-variable also known as the independent variable and the force (Newtons) needed to lift each weight as the y-variable or should I say dependent variable. After plotting each point we connected the lines and came up with our "best fit line", which is line that will hit the most scatter points on the graph then this is what my group and I came up with:

Once we were able to come up with this graph we were able to visually look at their relationship and soon enough we discovered  an equation that relates mass to force, and got y=(9.622)M. Looking at our simple equation with a ton of decimals we decided to take  it a step further and concluded that F=10M, which also happens to be Newton's formula.

Physics in the real world? NO WAY!

Everyday humans use some kind of force without even knowing it, and usually this force is to lift up some type of mass. It can vary from lifting a pencil or even picking up a picture frame but either way they ALL  require some force depending on how heavy the item is. For example I picked up a pencil today with ease but when I got home I had to move my desk with was really heavy and it took my dad and I to lift it. The desk took more force in order to move because it has a bigger mass just like the weights in our lab.
